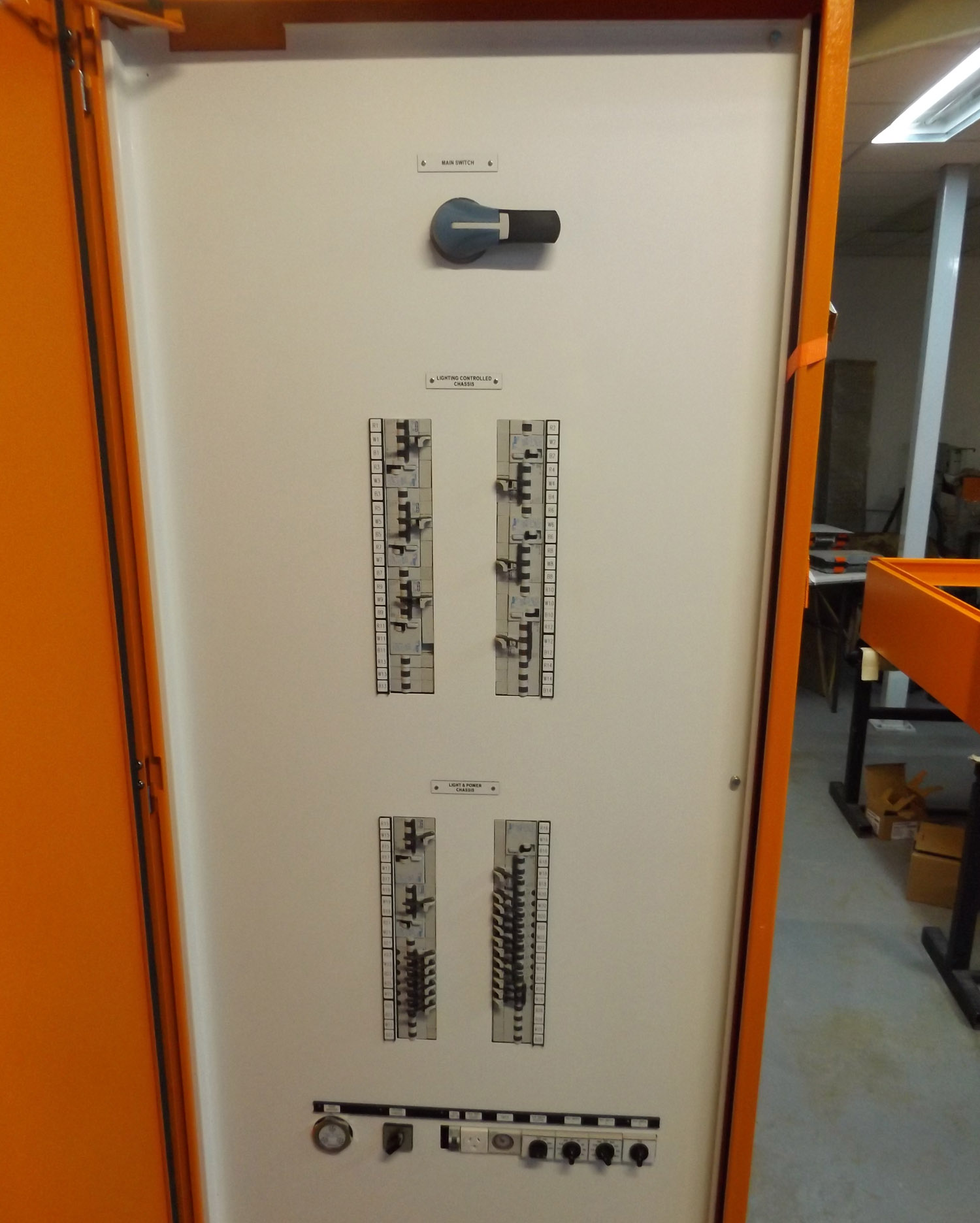

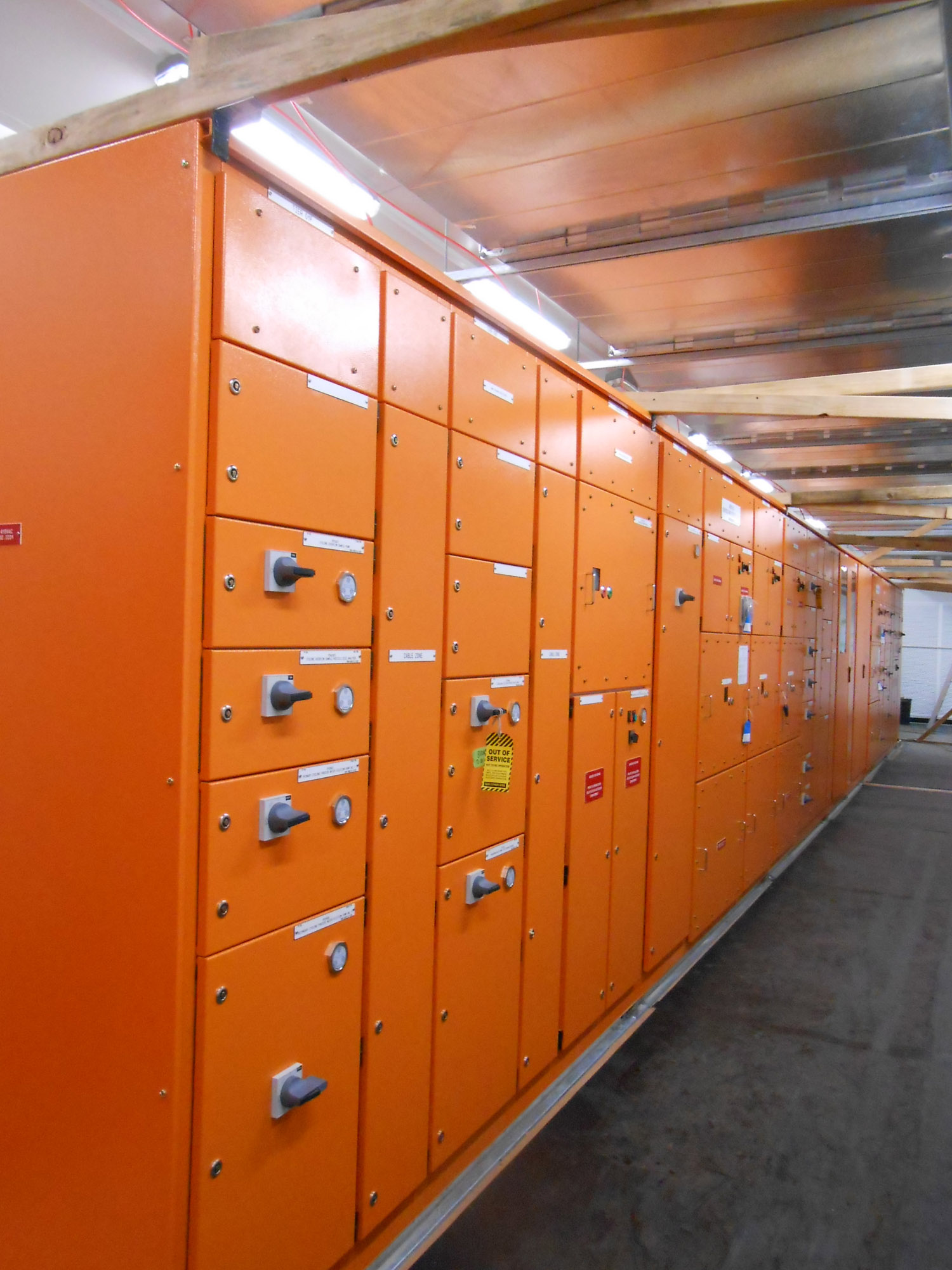

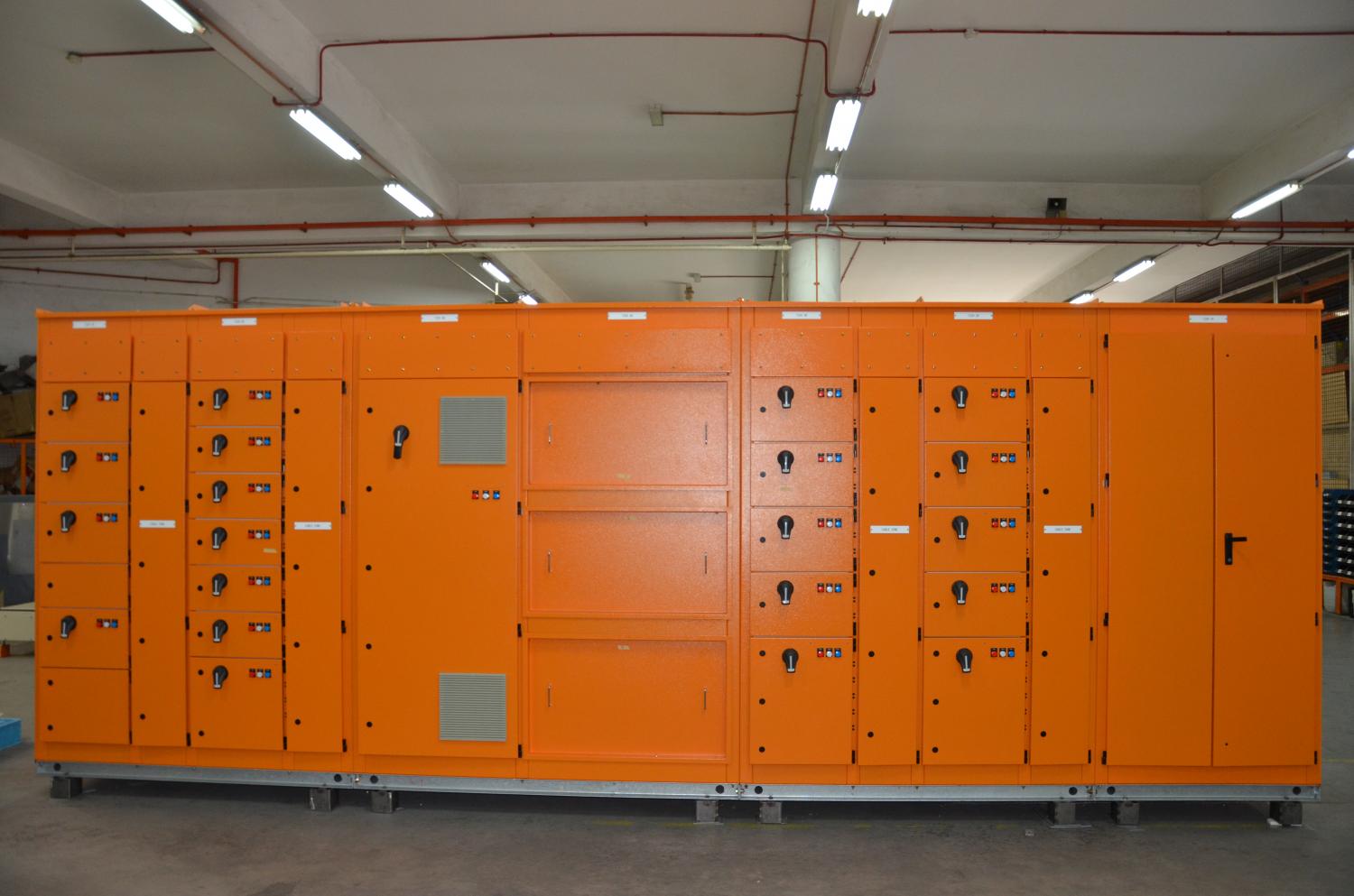

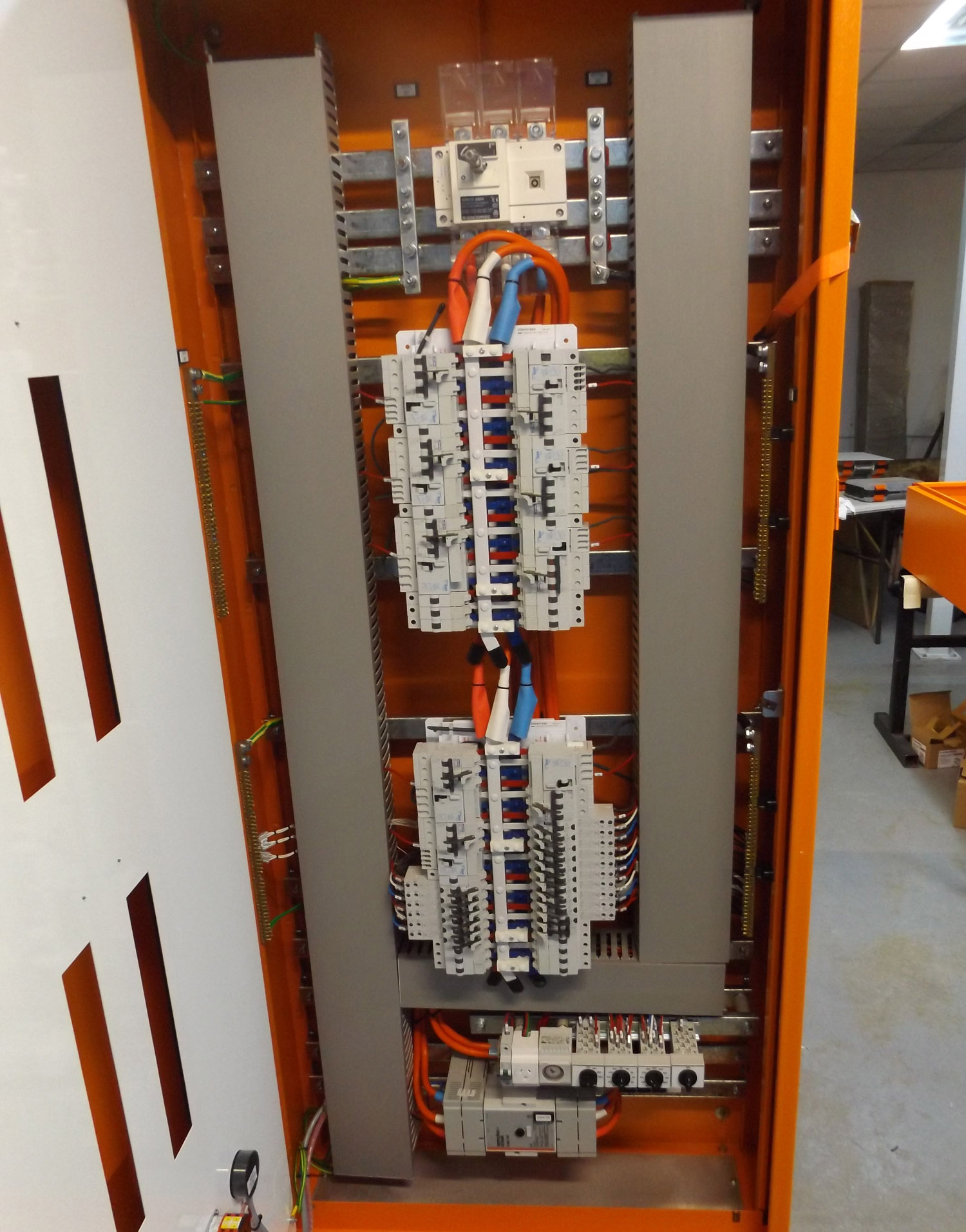

POWINS LV Switchgear

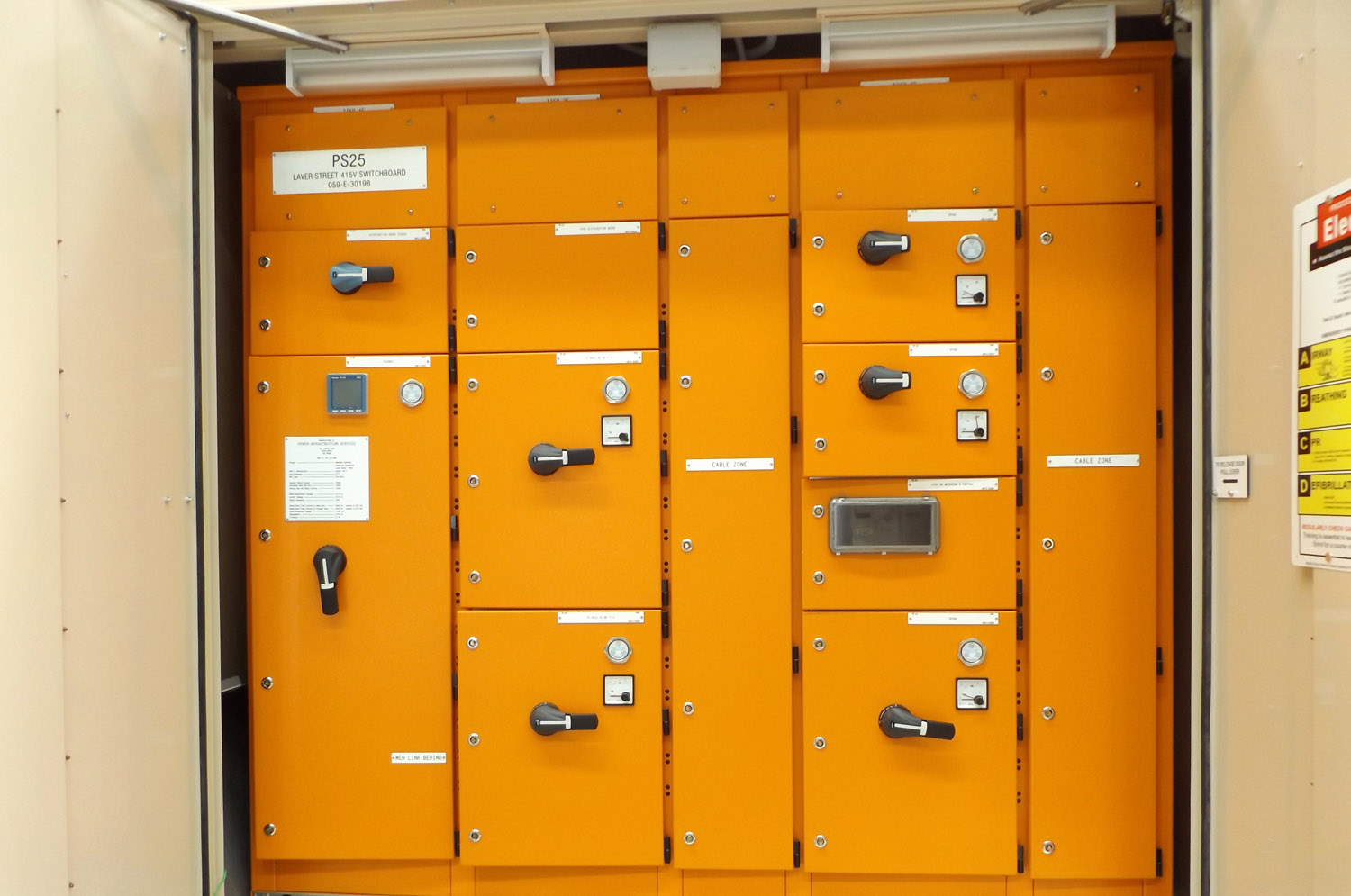

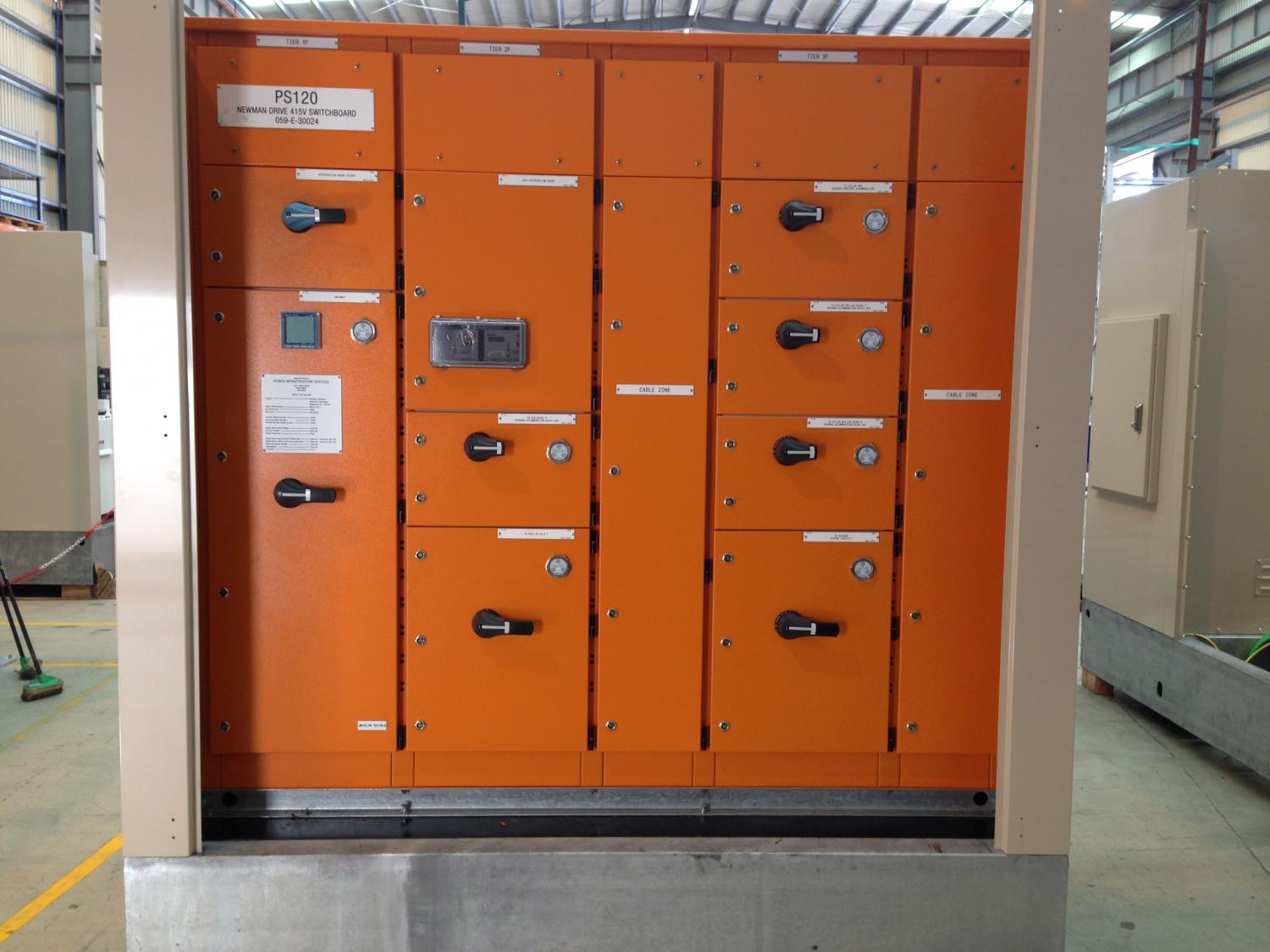

The POWINS ECO-BLOCK PLUS series of switchgear is a low voltage, fully metal-clad low-cost solution incorporating a modular construction ideal for electrical distribution and motor control applications.  Its flexible design and range of configuration options allows the design to be adapted to perfectly suit mining, oil and gas, water, infrastructure, power generation and distribution applications.

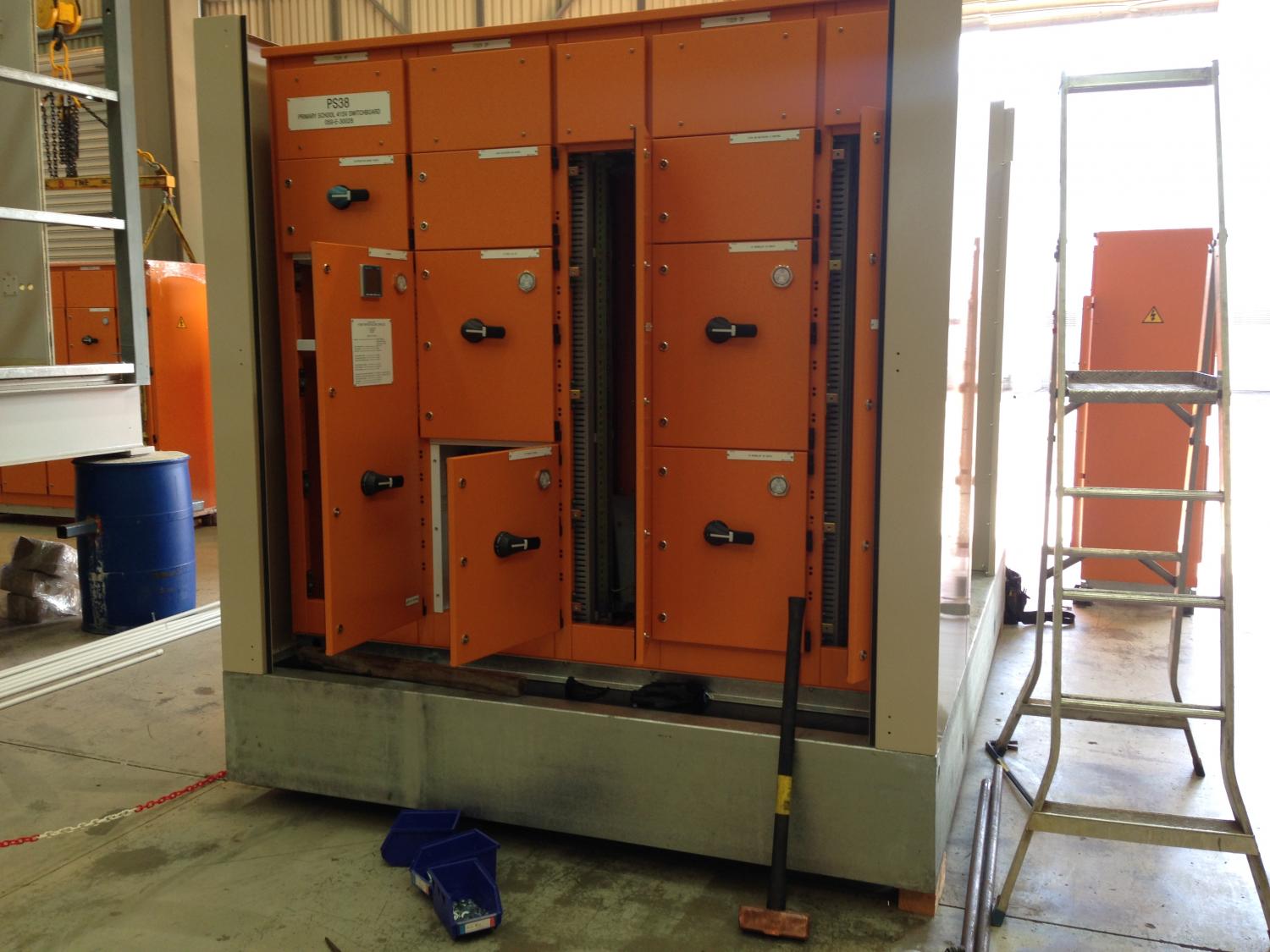

The POWINS ECO-BLOCK PLUS has a wide selection of module and tier configurations. The range and size of the various plug-in, de- mountable modules offers an infinite selection, ensuring flexibility to meet specific customer requirements, whilst ensuring compliance to both Australian and IEC standards.

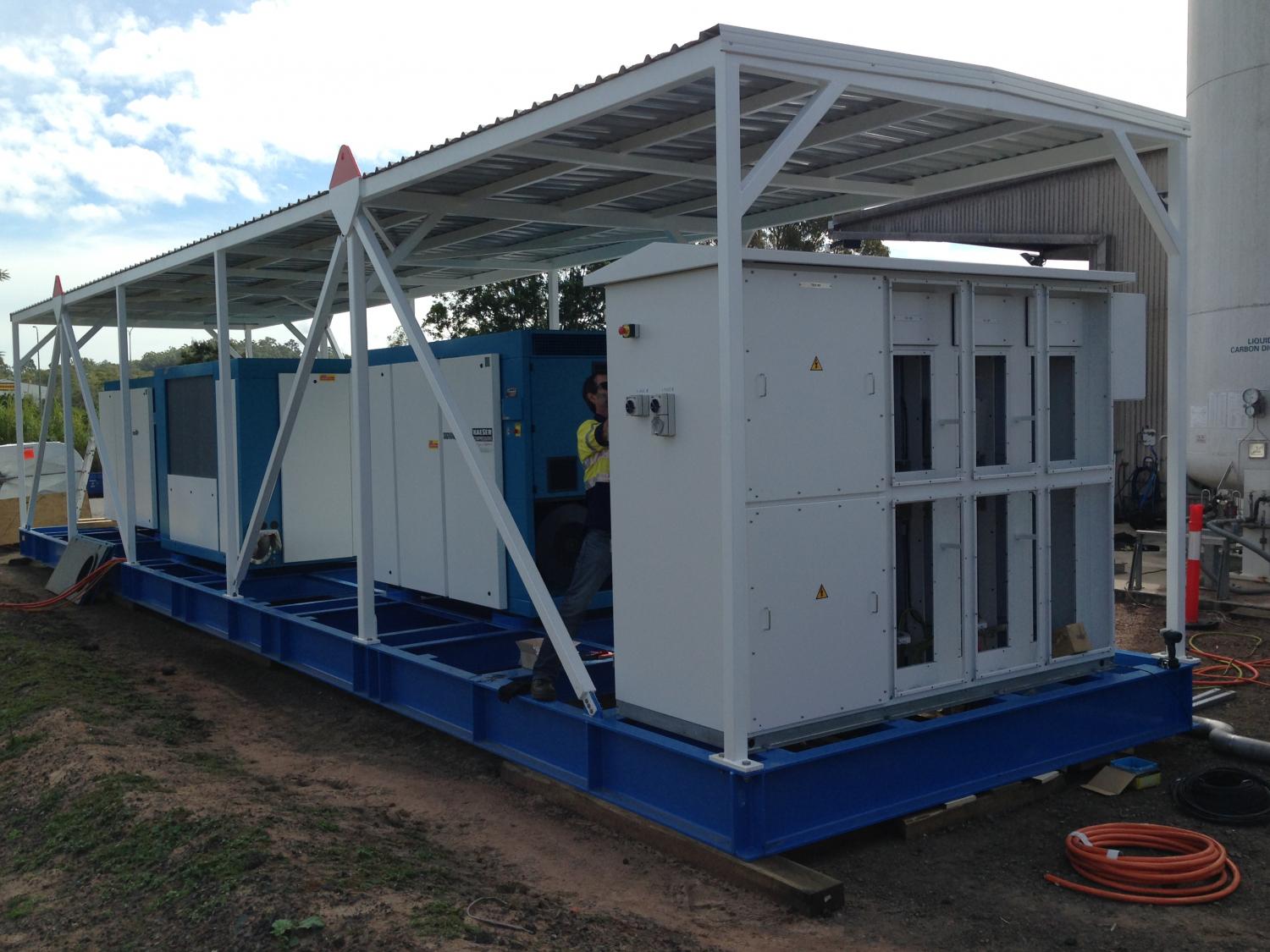

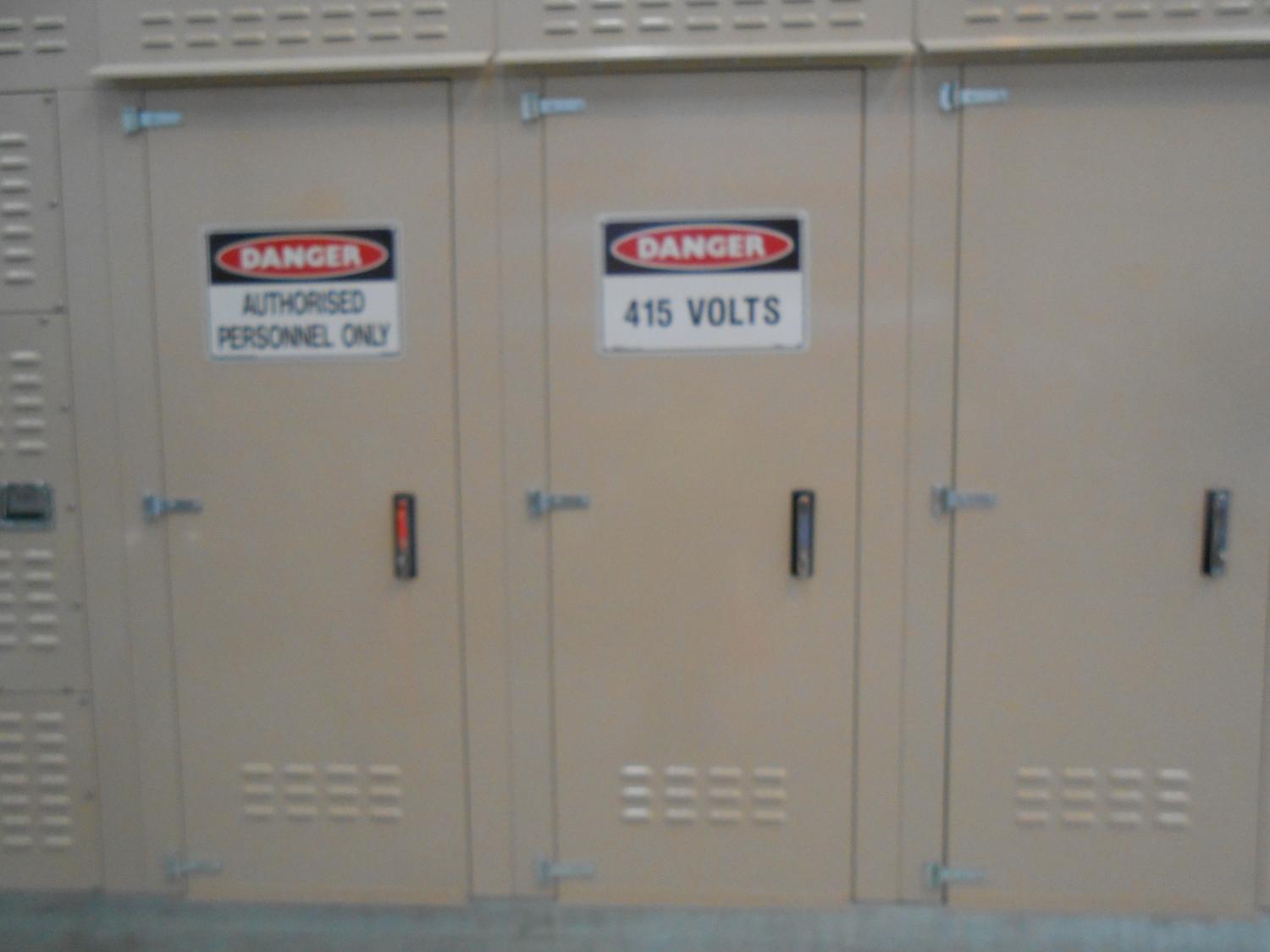

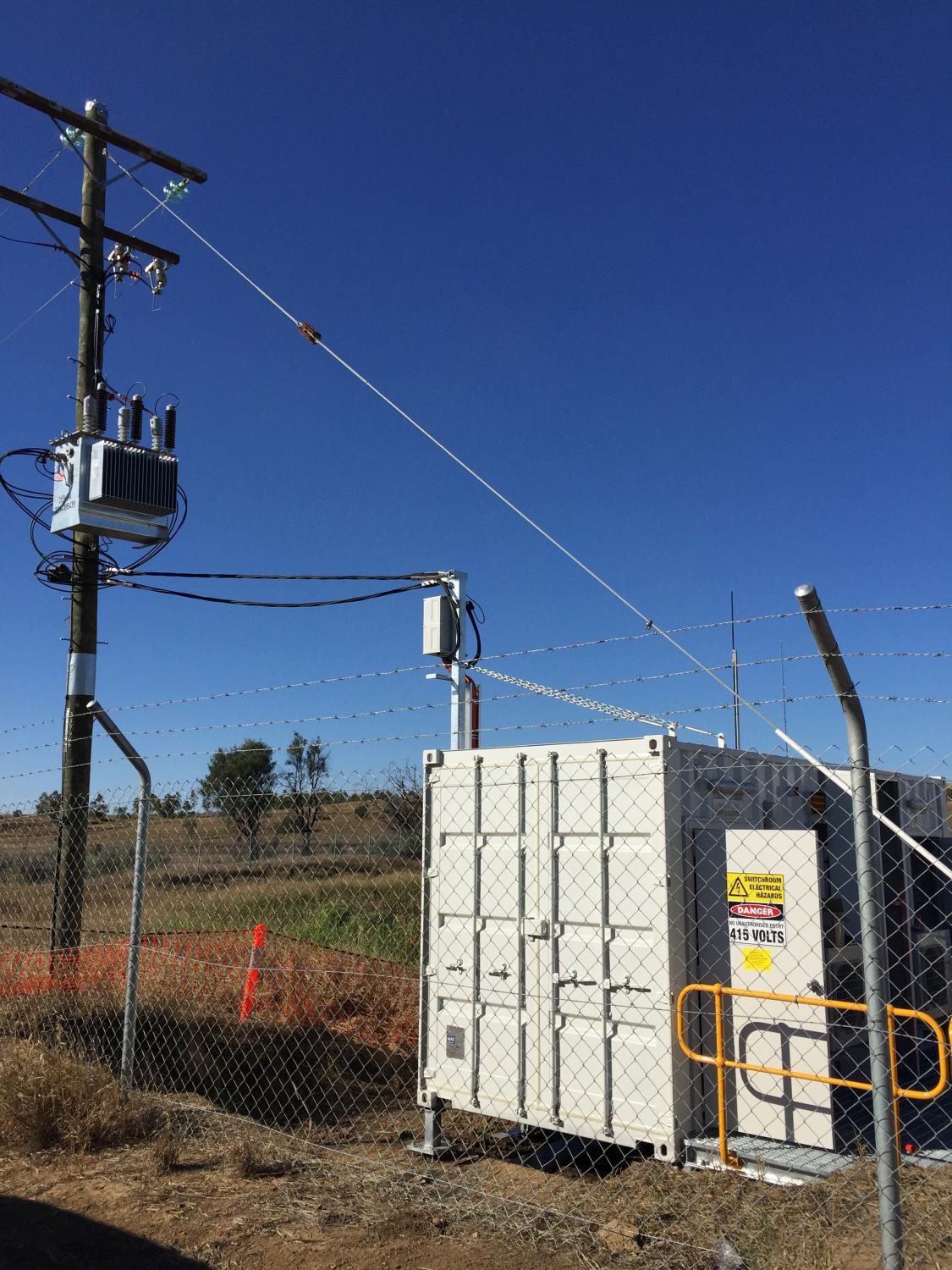

The POWINS ECO-BLOCK PLUS series of switchgear is available in operational voltages of 415V, 690V and 1000VAC. The main busbar rating is available up to 5000A with a maximum permissible prospective short circuit level of 80kA. A fully insulated busbar system is also available if required. The LV switchgear is offered in Form 1 through to Form 4b, front or rear connected, in either single or double sided arrangements. It is suitable for both indoor and outdoor applications with IP ratings from IP43 up to IP56.

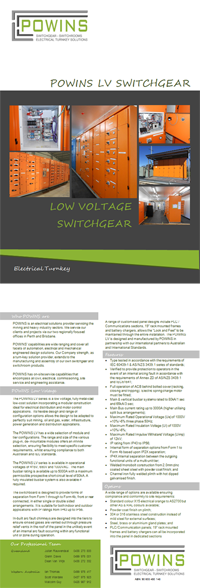

For more information on our LV Switchgear, contact us for a brochure or data sheet.
